Mikrotik

Maximilian Willert
  • Actualización

Esta guía explica cómo integrar SO Connect en la infraestructura WIFI de Mikrotik. En caso de tener alguna consulta, puedes contactar con nuestro equipo de Soporte en support@soconnect.com



Modelos probados:

  • RB2011 (iL-N, UiAS, 2HnD)
  • RB3011 (UiAS)
  • hAP RB951Ui-2nD
  • hAP ac RN952UiGS
  • hAP lite RB941-2nD
  • CCR1009 Series

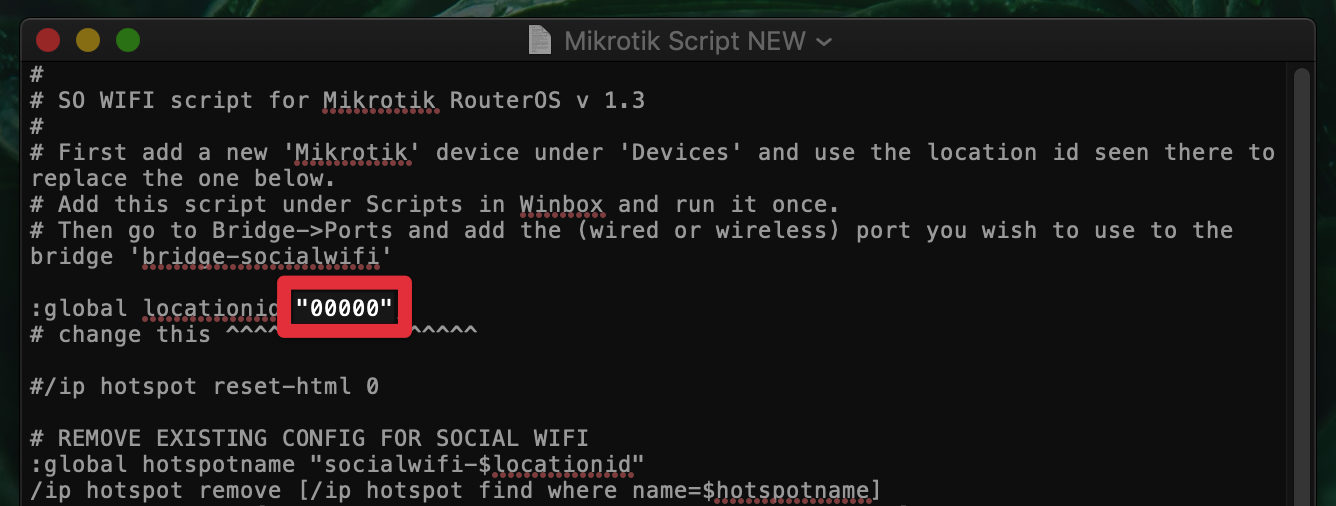

Descargue el script de abajo y edite el ID de ubicación único en esta parte:


Script for Mikrotik RouterOS v1.3
#
# SO WIFI script for Mikrotik RouterOS v 1.3
#
# First add a new 'Mikrotik' device under 'Devices' and use the location id seen there to replace the one below.
# Add this script under Scripts in Winbox and run it once.
# Then go to Bridge->Ports and add the (wired or wireless) port you wish to use to the bridge 'bridge-socialwifi'

:global locationid "62784";
# change this ^^^^^^^^^^^^^^^^^^

#/ip hotspot reset-html 0

# REMOVE EXISTING CONFIG FOR SOCIAL WIFI
:global hotspotname "socialwifi-$locationid"
/ip hotspot remove [/ip hotspot find where name=$hotspotname]
/ip pool remove [/ip pool find where name="hs-pool-socialwifi"]
/ip dhcp-server remove [/ip dhcp-server find where name="dhcp-socialwifi"]
/ip hotspot user remove [/ip hotspot user find where name="user"]
/ip hotspot profile remove [/ip hotspot profile find where name="hsprof-socialwifi"]
/ip addres remove [/ip address find where interface=bridge-socialwifi]
/ip dhcp-server network remove [/ip dhcp-server network find where comment="hotspot network"]
/interface bridge remove [/interface bridge find where name="bridge-socialwifi"]

:global model [/system routerboard get model]
:global modelUrlEncoded ""
:for i from=0 to=([:len $model] - 1) do={
  :local char [:pick $model $i]
  :if ($char = " ") do={
    :set $char "%20"
  }
  :if ($char = "-") do={
    :set $char "%2D"
  }
  :set modelUrlEncoded ($modelUrlEncoded . $char)

}
:put $modelUrlEncoded

:global mac [/system routerboard get serial-number]
:global fw [/system routerboard get current-firmware]
:global fwt [/system routerboard get firmware-type]
:global path "hotspot";

:if ([:len [/file find name=flash/hotspot/login.html]] > 0) do={ :set path "flash/hotspot" }

/interface bridge
add name=bridge-socialwifi
/ip hotspot profile

add hotspot-address=10.1.0.1 html-directory=$path login-by=mac,http-pap mac-auth-mode=mac-as-username-and-password name=hsprof-socialwifi radius-interim-update=10m radius-mac-format=XX-XX-XX-XX-XX-XX use-radius=yes
/ip hotspot user profile
set [ find default=yes ] shared-users=unlimited
/ip pool
add name=hs-pool-socialwifi ranges=10.1.0.2-10.1.7.254
/ip dhcp-server
add address-pool=hs-pool-socialwifi disabled=no interface=bridge-socialwifi lease-time=1h name=dhcp-socialwifi
/ip hotspot
add address-pool=hs-pool-socialwifi addresses-per-mac=1 disabled=no interface=bridge-socialwifi name="socialwifi-$locationid" profile=hsprof-socialwifi
/ip address
add address=10.1.0.1/21 comment="hotspot network" interface=bridge-socialwifi network=10.1.0.0
/ip dhcp-server network
add address=10.1.0.0/21 comment="hotspot network" gateway=10.1.0.1
/ip firewall nat
add action=masquerade chain=srcnat comment="masquerade hotspot network" src-address=10.1.0.0/21
/ip hotspot user
add name=user
/ip hotspot walled-garden
remove [find where dst-host="hotspots.so-wifi.com"];add dst-host=hotspots.so-wifi.com
remove [find where dst-host="*.internetaccess.io"];add dst-host=*.internetaccess.io
remove [find where dst-host="*.facebook.com"];add dst-host=*.facebook.com
remove [find where dst-host="*.facebook.net"];add dst-host=*.facebook.net
remove [find where dst-host="*.fbcdn.net"];add dst-host=*.fbcdn.net
remove [find where dst-host="*.akamaihd.net"];add dst-host=*.akamaihd.net
remove [find where dst-host="*.cloudfront.net"];add dst-host=*.cloudfront.net
remove [find where dst-host="ssl.google-analytics.com"];add dst-host=ssl.google-analytics.com
/radius
remove [find where address=87.233.181.54];add address=87.233.181.54 secret=sowifihotspots service=hotspot
remove [find where address=87.233.181.55];add address=87.233.181.55 secret=sowifihotspots service=hotspot
/file set "$path/login.html" contents="<html><head><meta http-equiv=\"refresh\" content=\"0; url=https://hotspots.so-wifi.com/partner/mikrotik/\?location_id=$locationid&mac=\$(mac)&ip=\$(ip)&userurl=\$(link-orig)&uamip=\$(link-login-only)\" /><meta http-equiv=\"pragma\" content=\"no-cache\"><meta http-equiv=\"expires\" content=\"-1\"></head></html>"
/file set "$path/alogin.html" contents="\$(if http-status == 302)Hotspot login required\$(endif)\$(if http-header == \"Location\")\$(link-redirect)\$(endif)"
/system scheduler
remove [ /system scheduler find where name=SocialwifiCheckin]
add comment="Run social wifi checkin" disabled=no interval=30m name=SocialwifiCheckin on-event="/tool fetch url=\"https://hotspots.so-wifi.com/admin/mikrotik/checkin/id/$locationid\?model=$modelUrlEncoded&mac=$mac&firmware=$fw&firmware-type=$fwt\" mode=\"https\" dst-path=\"mikrotik-config.rsc\";/delay 2;/import mikrotik-config.rsc;/file remove mikrotik-config.rsc"} policy=ftp,reboot,read,write,policy,test,winbox,password,sniff,sensitive start-date=Nov/14/2012 start-time=01:00:00


Para que el ancho de banda se recoja a partir de la respuesta del radio, debe configurarse:

/ip firewall filter add chain=forward action=fasttrack-connection connection-state=established,related


 -----------------------------------------------------------------------------------------------------
Con esto concluye la guía sobre cómo integrar SO Connect en una infraestructura de Mikrotik WIFI. Para preguntas y ayuda contáctenos a: support@soconnect.io o +34 93 220 16 19
