This section describes the physical features of the Ruckus Unleashed R310 802.11ac Access Point.
R310 Access Point
Front Panel

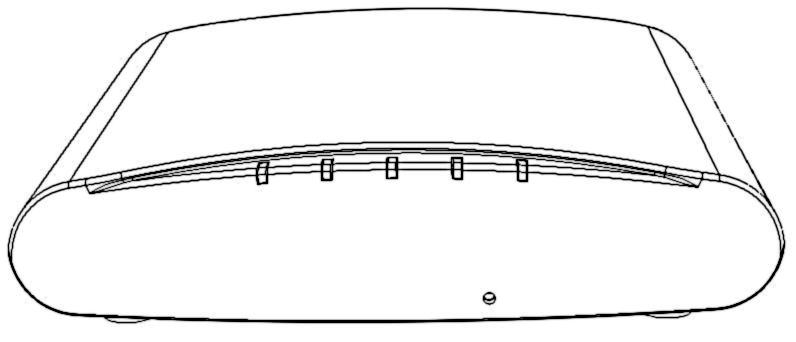

The R310 AP features five LEDs on its front panel.
| LED | Status | Description |
|---|---|---|

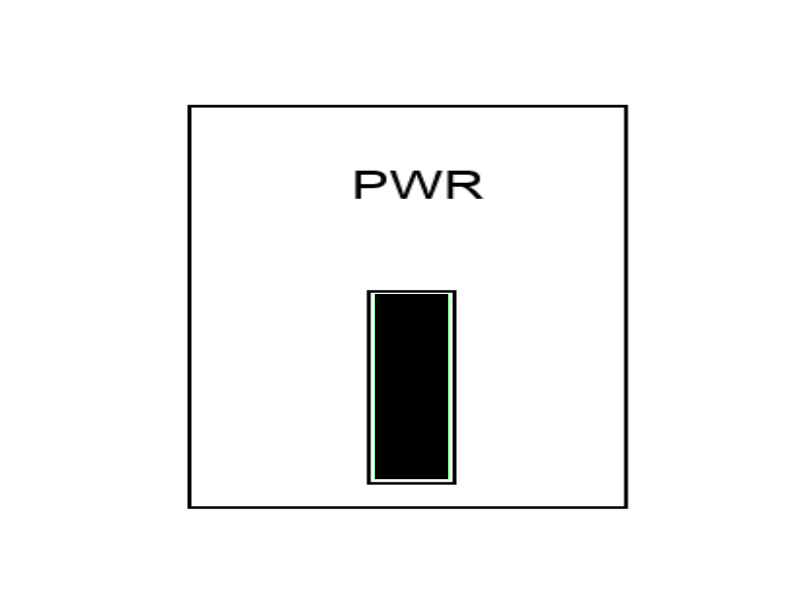

| PWR | Off |
No power connected. |
| PWR | Solid Red |
Boot up in process. |
| PWR | Flashing Green |
System started, no routable IP address detected. |
| PWR | Solid Green |
Routable IP address received. |
| DIR | Off |
Unleashed Member AP. |
| DIR | Flashing Green (slow, every 2 seconds) |
Network problem. Cannot contact Unleashed Master. |
| DIR |
Flashing Green (fast, 2x per second) |
Receiving configuration or image upgrade. |

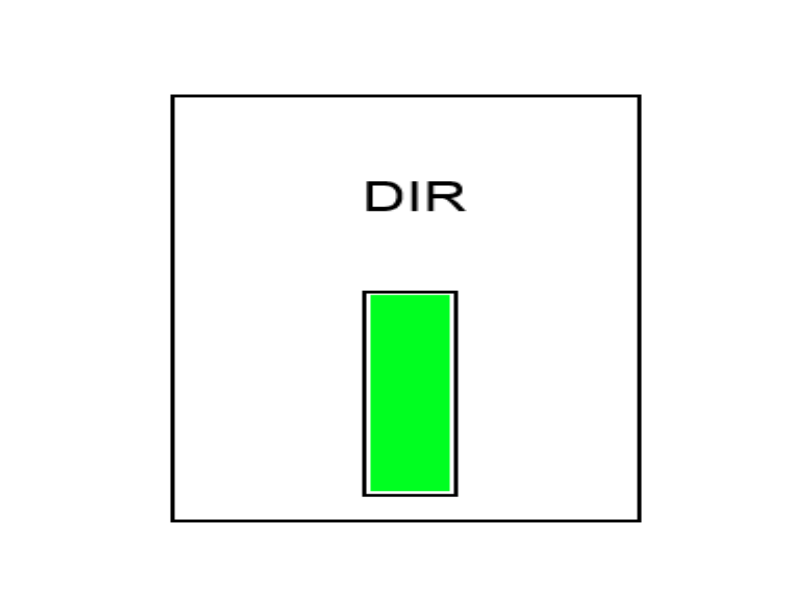

| DIR | Solid Green |
Unleashed Master AP, or connected to Master AP as a Member AP. |
| AIR | N/A |
Not used. |
| 2.4G | Off |
Radio is down. |

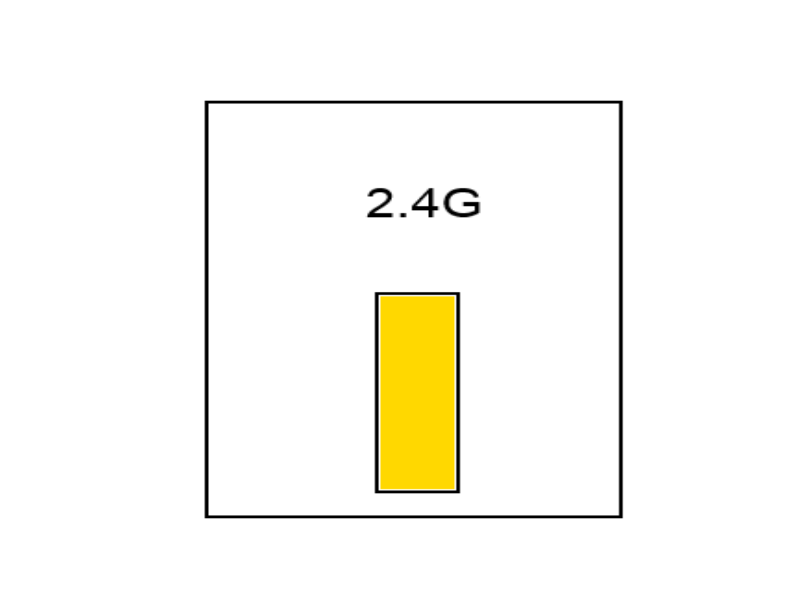

| 2.4G | Amber (solid) |
Radio is up, no clients are connected to the 2.4 GHz radio. |

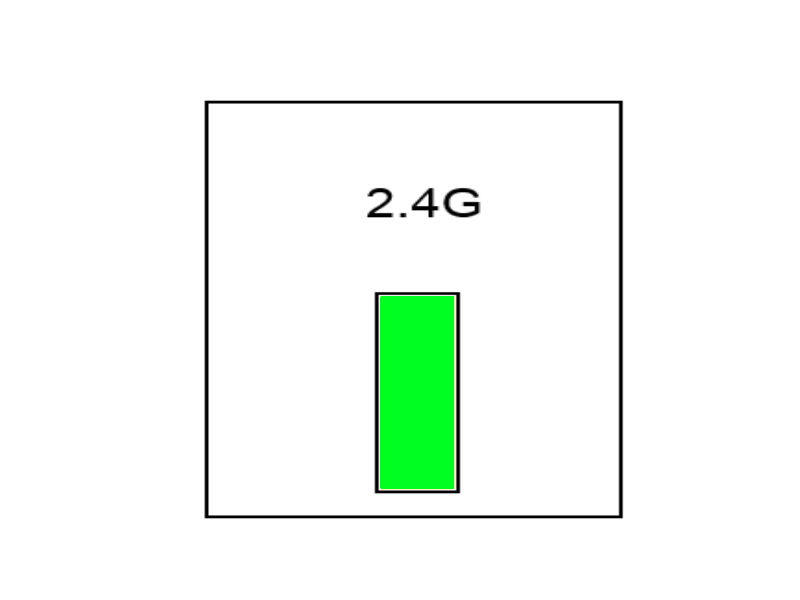

| 2.4G | Solid Green |
Radio is up, at least one client is connected to the 2.4 GHz radio. |
| 5G | Off |
Radio is down. |

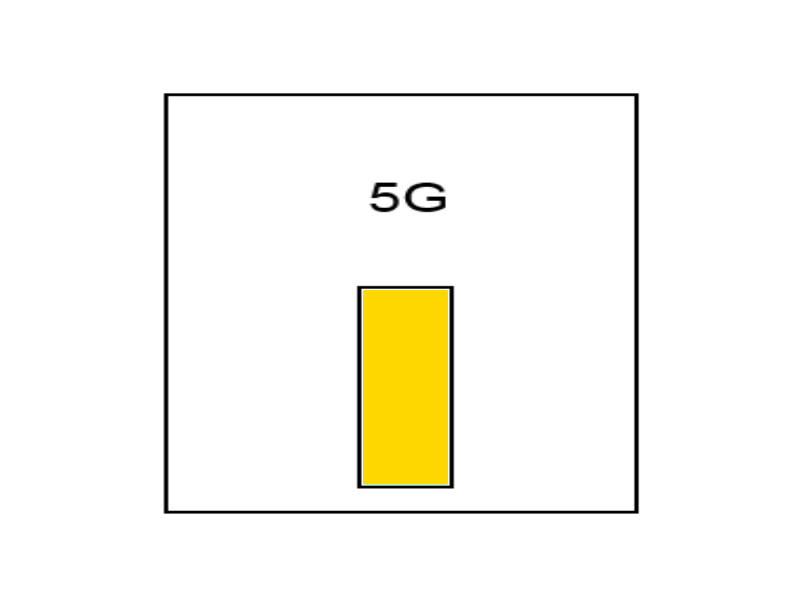

| 5G | Amber (solid) |
Radio is up, no clients are connected to the 5 GHz radio. |
| 5G | Solid Green |
Radio is up, at least one client is connected to the 5 GHz radio. |
